Features and benefits
Up to 11Gbps Speed New!
Unleashes WiFi 7 speeds up to 11Gbps† for flawless performance and coverage for your whole home
Tri-Band Technology New!
Tri-Band technology with Enhanced Backhaul ensures WiFi stays fast across all devices simultaneously
Reimagined Speed & Reliability
Whether multi-gig cable or fiber, get the fastest speeds available today with a 2.5 Gig internet port. 2.5Gbps† Ethernet ports for wired connections and 2.5Gbps wired backhaul option
8k Streaming, Gaming and More

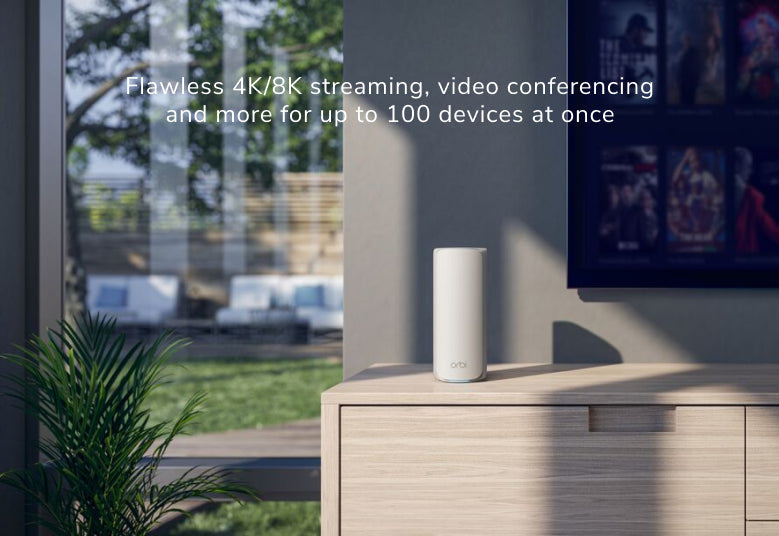

From 8K streaming to video conferencing, gaming, VR, and more, Orbi ensures your family can accomplish it all at once
360° WiFi Coverage
Elegant, new design and high-performance antennas provide exceptional 360° WiFi coverage across every corner of your home, no matter the layout
Powerful Security New!
NETGEAR® routers have security features enabled out of the box with exclusive Advanced Router Protection, automatic firmware updates, and industry-leading safety features to help protect you and your family
Essential All-In-One Internet Security
NETGEAR Armor™ software provides an automatic shield of security for your WiFi and connected devices (PC, phone, camera, TV, etc.) for real-time protection against hackers. 30-day trial included
Easy Set Up with Any Service Provider
Simple to plug Orbi into your modem and set it up with the Orbi app
What’s new




Product Overview
Orbi Mesh Technology
Tri-Band
Faster speeds and more connected devices
Up to
8,000 sq. ft.
WiFi coverage
Up to
11Gbps
maximum WiFi speed
Up to
100
concurrent devices
Elevate every experience with elite performance
Streaming
Stream 4K/8K video to all devices at once in pristine quality

Video conferencing
Take Zoom calls from any room without worry
Gaming
Experience next-gen gaming with significantly lower latency

Smart home
Connect hundreds of smart home devices with no slow down
Orbi WiFi 7, our most powerful WiFi ever
2.4X FASTER SPEED
Download movies, games & files in an instant
RESILIENT WIFI
Preamble puncturing blocks interference for stronger WiFi connections
HIGH-THROUGHPUT CONNECTION
Multi-link operation enables devices to connect at even higher speed with greater reliability
SIGNIFICANTLY LOWER LATENCY
WiFi 7 technology provides real-time, responsive gaming & immersive AR/VR experiences


Designed for even more power
Orbi’s innovative new design and high-performance antenna array provide 360° WiFi coverage across every corner of your home and property, no matter the layout.
Unlock multi-gig speeds
A 2.5 Gig internet port unlocks the latest multi-gig internet for your home. Get the ultimate flexibility with both 2.5 Gig wired LAN connectivity and multi-gig WiFi speeds.


The power of two: Multi-Link Operation
Orbi WiFi 7 taps both 6GHz and 5GHz WiFi bands at once to avoid network traffic and keep you connected if you move out of range of one band. It also enables devices to simultaneously send and receive data across both WiFi bands, increasing throughput.
Outsmart WiFi interference: Preamble Puncturing
Did you know your neighbors' WiFi might be slowing your network down? With previous versions of WiFi, any channels with interference become unavailable. Orbi WiFi 7 includes smart interference management, greatly reducing network congestion.


Easy setup and management
The Orbi app makes it easy to install your Orbi and get it up and running quickly. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider.
More WiFi networks, more performance
Easily create up to 3 separate networks for guests and smart home (IoT) devices to optimize overall network traffic.

[NETGEAR Armor]
Essential all-in-one internet security
NETGEAR Armor™ software provides an automatic shield of security for your WiFi and connected devices (PC, phone, camera, TV, etc.) for real-time protection against hackers and added privacy with VPN. 1-year subscription included.
Router & Satellite


Product specifications
- Orbi WiFi 7 Router (RBE771) (1)
- Orbi WiFi 7 Satellite (RBE770) (1)
- 2m Ethernet cable (1)
- Power adapters (2)
- Quick start guide
- Height
9.88 inches (251.2mm) - Width
5.28 inches (134.2mm) - Depth
3.95 inches (100.4mm) - Weight
2.02 lbs (0.916kg) - Overall WiFi Coverage
Up to 8,000 sq. ft. - Requirements
High-speed Internet connection to existing modem or gateway
ROUTER
- WiFi Coverage
Up to 2,500 sq. ft. - Speed
BE11000 (5,760 + 4,320 + 688Mbps)† - Simultaneous Quad-Band WiFi with dedicated backhaul
6GHz3 (2x2/320MHz, 4K-QAM): 5,760Mbps
5GHz (2x2/240MHz, 4K-QAM): 4,320Mbps
2.4GHz (2x2/40MHz, 1K-QAM): 688Mbps - Processor
Quad-core 1.5GHz processor - Memory
GB flash and 2GB RAM - Ports
One (1) 10/100/1000/2500Mbps WAN port††
Three (3) 10/100/1000/2500Mbps LAN ports
Two (2) 10/100/1000/2500Mbps Multi-Gig Ethernet LAN ports (each)
SATELLITE
- WiFi Coverage
Up to 2,500 sq. ft. - Speed
BE11000 (5,760 + 4,320 + 688Mbps)† - Simultaneous Tri-Band WiFi with Enhanced Backhaul
6 GHz3 (2x2/320 MHz, 4K-QAM): 5,760 Mbps
5 GHz (2x2/240 MHz, 4K-QAM): 4,320 Mbps
2.4 GHz (2x2/40 MHz, 1K-QAM): 688 Mbps - Ports
(Each)(2) 10/100/1000/2500Mbps Multi-Gig Ethernet LAN ports
- Orbi App:For easy installation and management
- Separate WiFi Networks for secure access:
- WPA3:For secure WiFi connection to devices
- Automatic Firmware Update:Delivers latest security patches to router automatically
- VPN Support:Provides secured remote access to your home network
NETGEAR Armor™
Internet security for your home with automatic protection, updates, & alerts that monitors and helps safeguard all connected devices from hackers and data theft.
† Maximum wireless signal rate derived from IEEE® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. To achieve maximum wireless/wired speed requires devices that use the latest wireless/wired standards and support maximum speeds. ‡ Requires client device that supports 320MHz bandwidth on WiFi. Four times faster than 80MHz WiFi bandwidth.
†† Gigabit service plans & compatible cable modem required for Gigabit or Multi-Gig Internet speeds.
1 NETGEAR Armor™ Powered by Bitdefender® requires a paid subscription after the initial trial. Visit www.netgear.com/armor
3 6GHz band is limited to indoor range.
